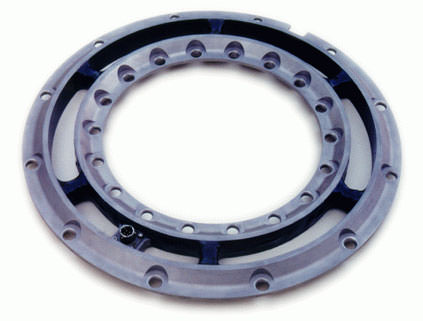

Model TW10.8 Wheel Torque Transducer


  • 3000 lb-ft capacity
  • Adapts to 12″-15″ wheels
  • Environmentally protected
  • Temperature compensated
  • Rugged stainless steel construction
  • Consistent sensitivity among all units
  • Configured to minimize magnetic sensitivity


Ideal for measuring wheel torque on passenger cars, the TW10.8 Wheel Torque Transducer provides one channel of torque data and is completely weatherproof. It is designed to attach to adapters that simulate production wheel rims. The adapter system is fabricated by generating a profile of the original wheel rim and designing a hub adapter and rim adapter that duplicate the critical dimensions of the original rim. The hub adapter fastens to the interior bolt circle of the torque transducer and the rim adapter fastens to the exterior bolt circle. The versatility of this system allows the torque transducer to be used with various wheel rim designs.

Both the torque and combined steer/camber moment load ratings of the TW10.8 transducer are 3000 lb-ft. High grade stainless steel material and weatherproof sealing combine to provide excellent resistance to corrosion and environmental conditions. Temperature compensation of the torque transducer ensures stable output throughout a wide temperature range. In addition, all wires are precisely located to reduce sensitivity to magnetic effects.
