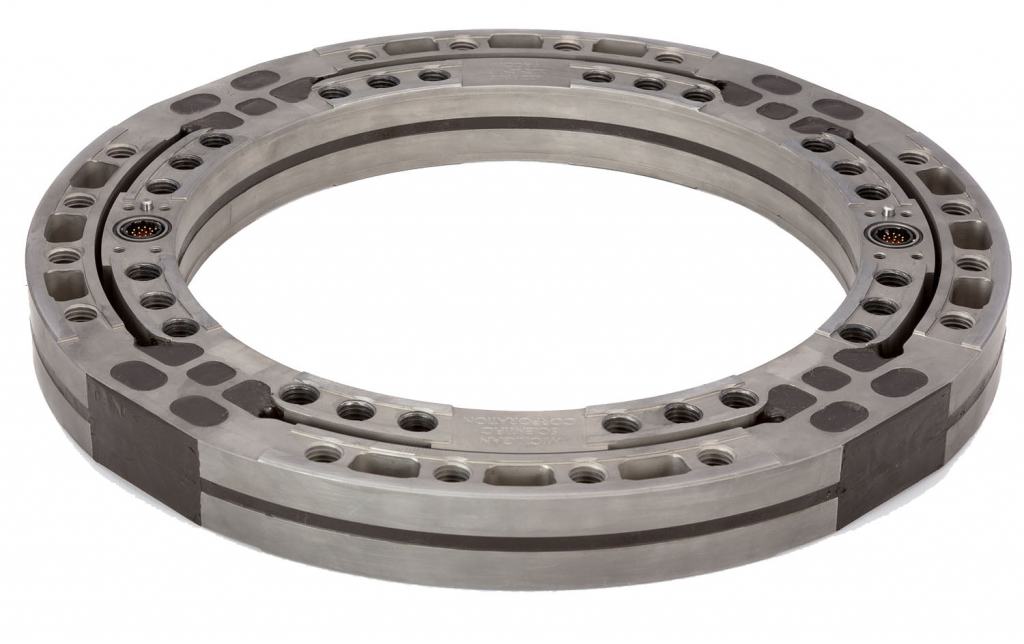

Model TW-2T-12.5K Wheel Torque Transducer

Features

  • 12,500 lb-ft (17 kN-m) capacity
  • Environmentally protected
  • Temperature compensated
  • Rugged stainless steel construction
  • Consistent sensitivity among all units
  • Configured to minimize magnetic sensitivity
  • Adapts to 16 inch and larger single or dual wheels

Description

The TW-2T-12.5K Wheel Torque Transducer is suitable for medium and heavy-duty trucks, vans and SUVs. One transducer will measure the combined torque load for a dual-wheel set or a single tire. It mounts onto the vehicle using custom designed adapters, which duplicate the critical dimensions of the production wheel and place the tires on the production centerline. Being rugged and waterproof, they are capable of on-road and off-road measurements in all conditions.

The TW-2T-12.5K measures all torque developed between the tire patch and the vehicle hub and can be used for drivetrain development to study efficiency, optimize component design, and monitor torque distribution in all-wheel-drive vehicles. It is also ideal for brake system component development, as well as anti-lock brake development, traction control, and vehicle stability system design. Measured data can be used for component development, computer modeling and laboratory simulation and validation.
