Features
- Ideal for automotive half shaft
- Mounts on shafts up to 1.2” in diameter
- Optional 60 pulse encoder
- Optional strain gage amplifier
- Rugged stainless steel construction
- Permanently lubricated bearings
- Instrumentation quality rings and brushes
Description

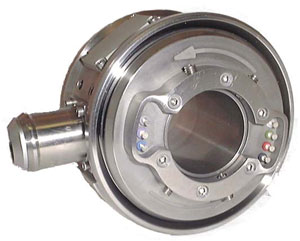

Michigan Scientific’s B7-T-1.2W Weatherproof Slip Ring Assembly is ideal for applications that require a slip ring to be mounted directly on a rotating shaft. The B7-T-1.2W was designed to make long-term, all weather (not submersible), torque measurements on automotive half shafts, but can be used in other applications with a shaft up to 1.2” in diameter (larger bores are available, consult factory). The slip ring sealing system protects against water spray, grit, dust, mud, slush, and snow.
Connections to strain gages, thermocouples, and other sensors are made via color-coded solder terminals located on the slip ring rotor. Each slip ring assembly includes a 15 ft stator cable with a protective rubber boot for the connector at the slip ring.
Encoder Option
The encoder included in the B7-T-1.2W/E60 Tubular Slip Ring produces a 60 pulse/revolution 5-volt square wave. The TTL compatible signal is produced by a hall-effect sensor, which allows speed to be determined down to 0 mph. The voltage required to drive the encoder can range from 5.5 to 45 DC volts.
