Features

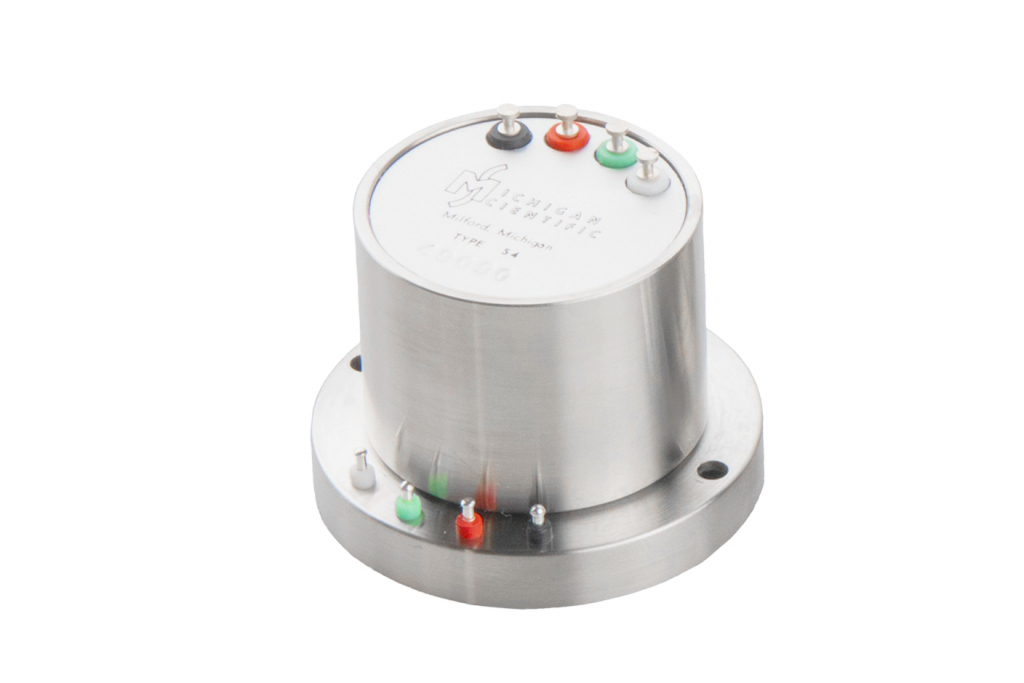

- 4 connection slip ring
- Sealed against dust
- Color coded terminals
- Lightweight and compact
- Permanently lubricated bearings
- Rugged stainless-steel construction
- Instrumentation quality rings and brushes
- In Stock
Documents
Tech Notes:
Accessories
Basic Stator Restraint Assembly Kit (Part # 1023174)
Includes:
- S-Series Stator Restraint Clamp Assembly
- Two rotor mounting bolts; #4-40 x 7/16″
- Steel extension springs with crimps
- Zip ties for securing wire for clamping restraint
- Allen key for #4-40 bolts
S-Series Rotor Adapter (Part # C172006B)
This rotor adapter can be modified to fit shaft diameters from 0.250 in (6.4 mm) to 0.750 in (19.0 mm). This adapter includes a slot for routing wires from the bore of a shaft to the slip ring’s outer flange. For modifications or custom solutions, contact our engineering team.
