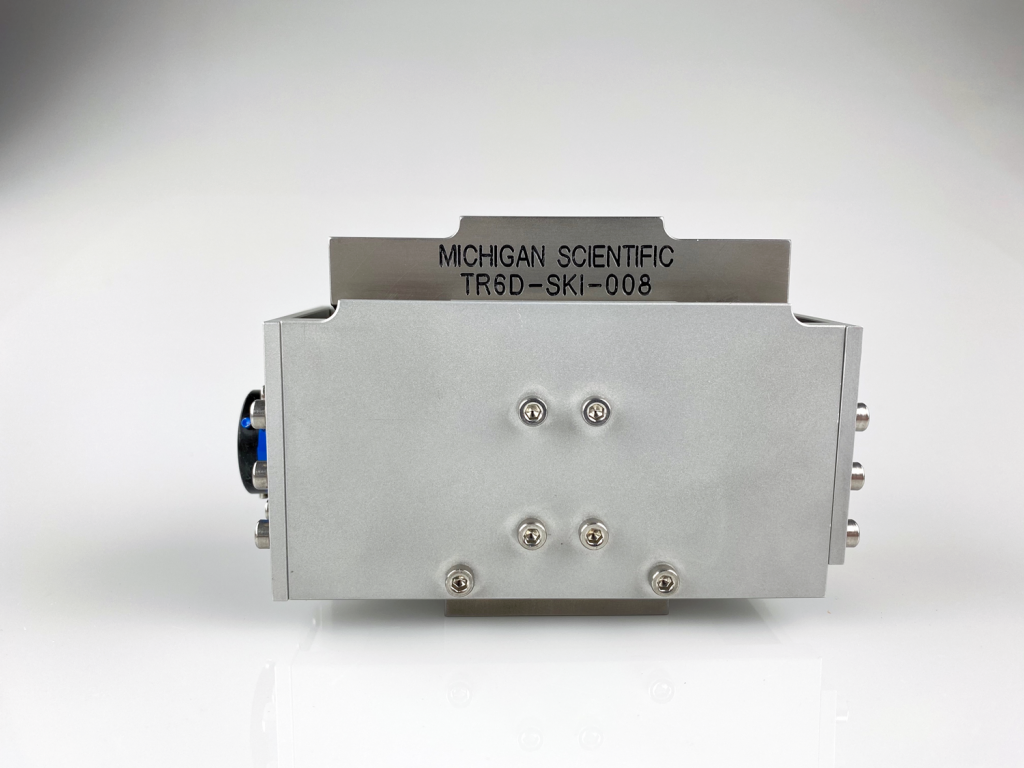

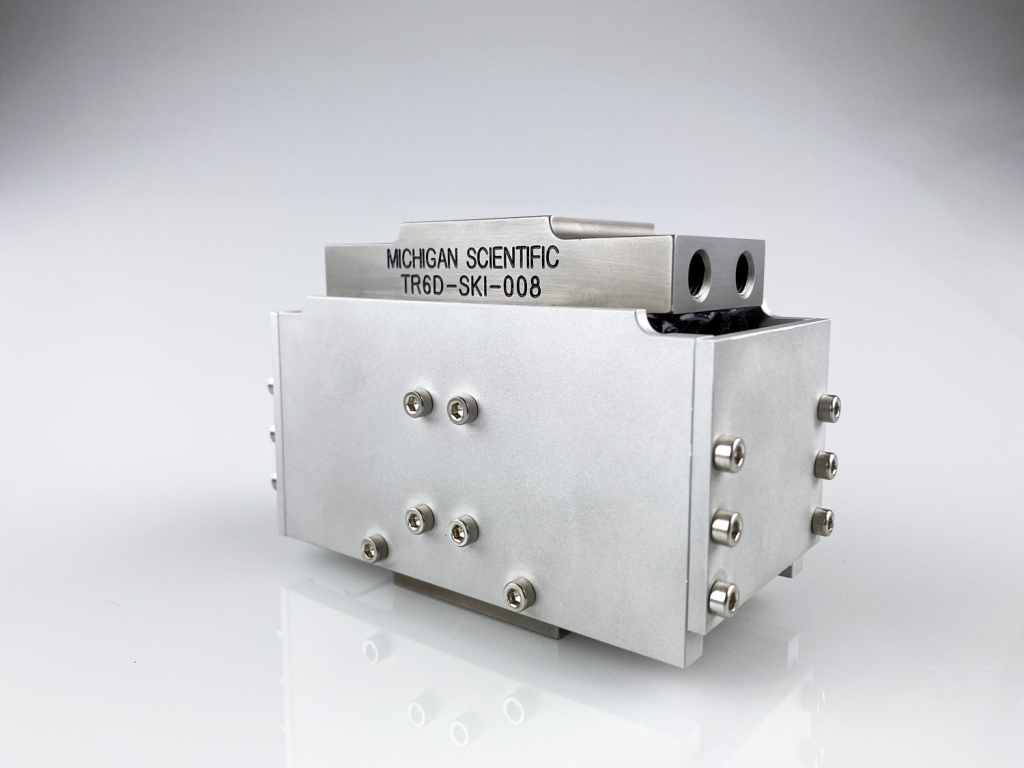

TR6D-SKI Six Axis Snowmobile Transducer


  • Used to measure ski loads on snowmobile
  • Measures in all 6 axes
    • 5,000 lb Fx capacity
    • 3,500 lb Fy capacity
    • 8,500 lb Fz capacity
    • 500 lb-ft moment capacity


The TR6D-SKI is a non-rotating, 6 axis transducer. It is designed to measure the ski loads on a snowmobile, but can be used in any non-rotating application where 6 axis measurements are needed. It has no signal conditioning electronics, so it is recommended to use either a DAQ system which has strain gauge capabilities, a CT2, or MSC strain gauge amplifiers
