Features
- Fully assembled crash barrier system
- Strain gauge-based transducers
- Single-axis or three-axis load cells
- Compatible with all DAQs
- Customizable size, load capacity, and number of axes
Description

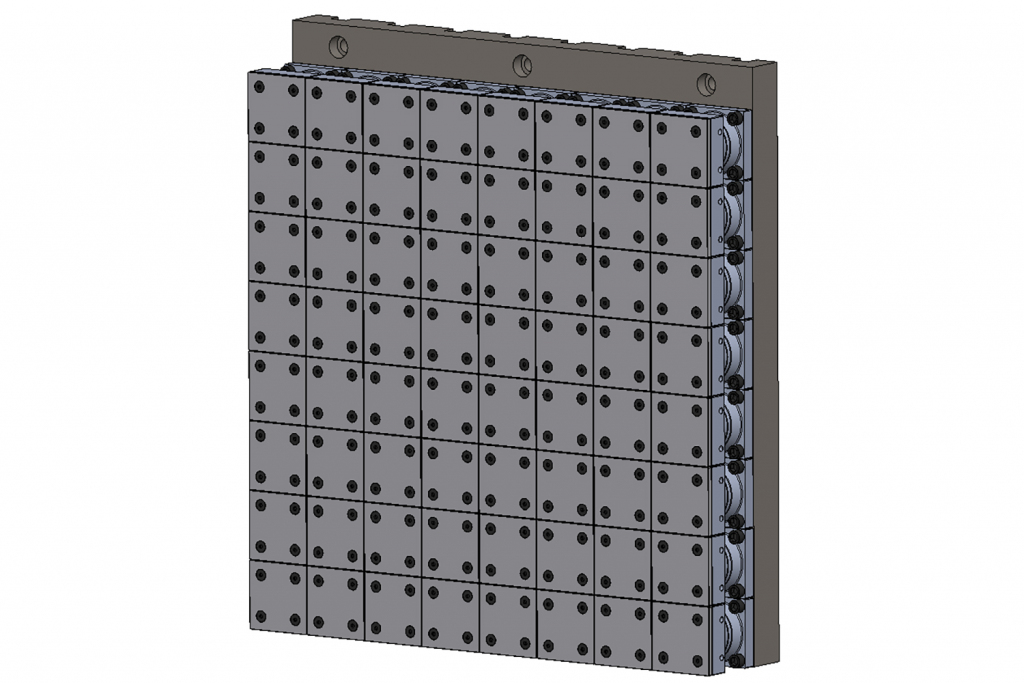

The Instrumented Crash Barrier System includes 64 Load Cells mounted to a rigid mounting plate. This provides a 1 m x 1 m instrumented barrier face with load cells at 125 mm spacing. The system comes fully assembled with the load cells mounted to the plate and the signal wires routed within the mounting plate. It does not require a specific DAQ, allowing the user to connect the system to their DAQ of choice.
The barrier utilizes 64, strain gauge-based load cells and can use the Michigan Scientific CT500 Three-Axis Load Cells or CT501 Single-Axis Load Cells. The load cells are made of high-grade stainless steel and have a rugged design with all the electronics mounted internally.

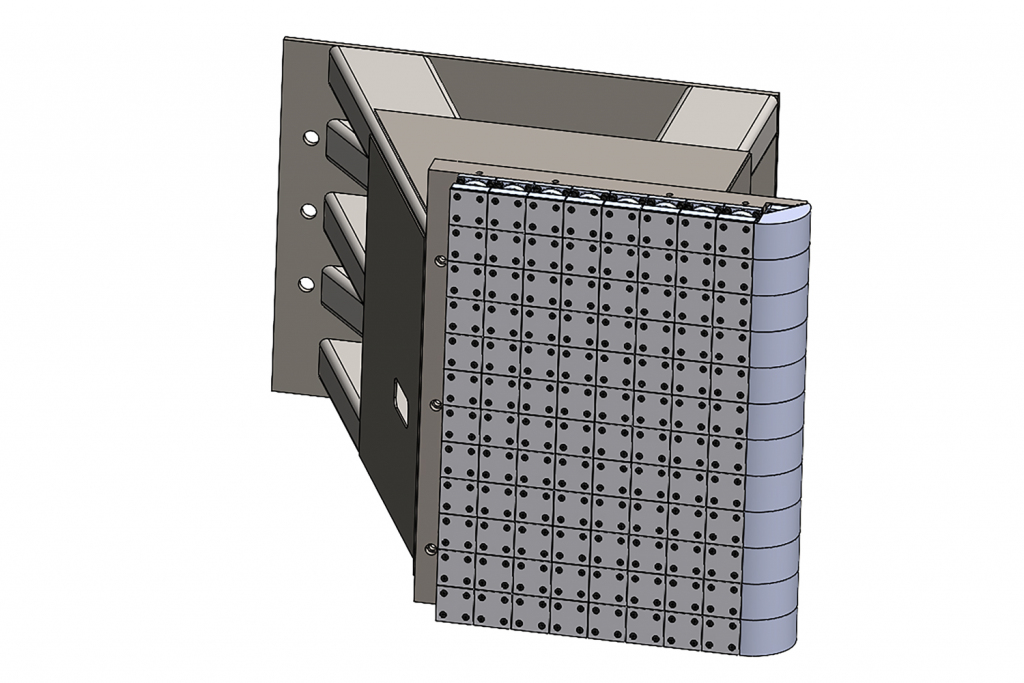

The size of the barrier face can be expanded by using multiple systems. The Instrumented Crash Barrier System mounts easily to the customer’s barrier frame, allowing the system to be moved between testing setups easily.
