Features
- Easily mounts to shafts
- Programmable transmitter gain
- Induction powered
- Compact package
- Rugged and weatherproof
Description

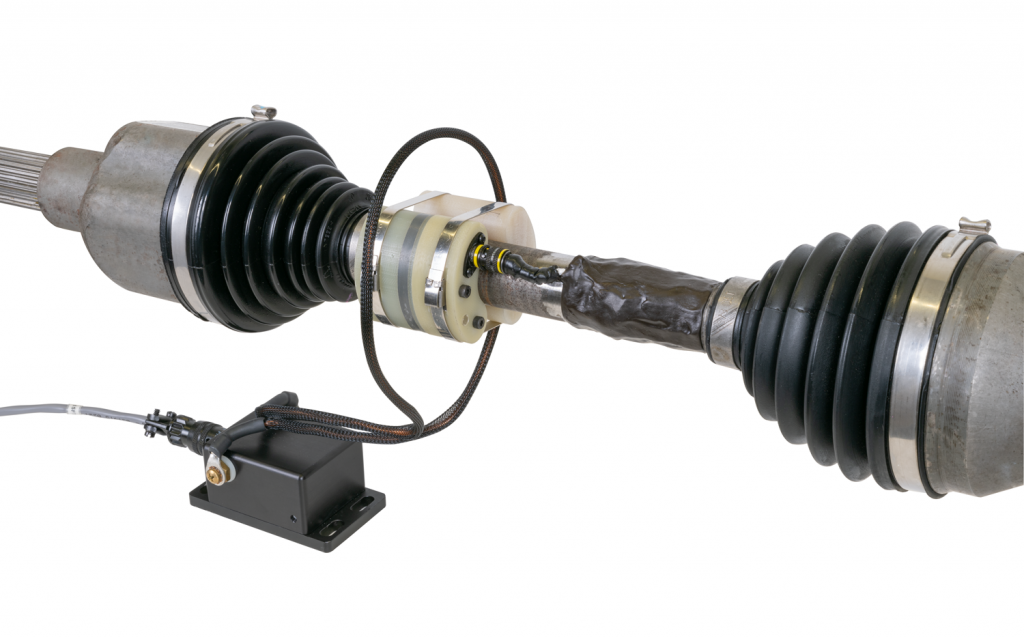

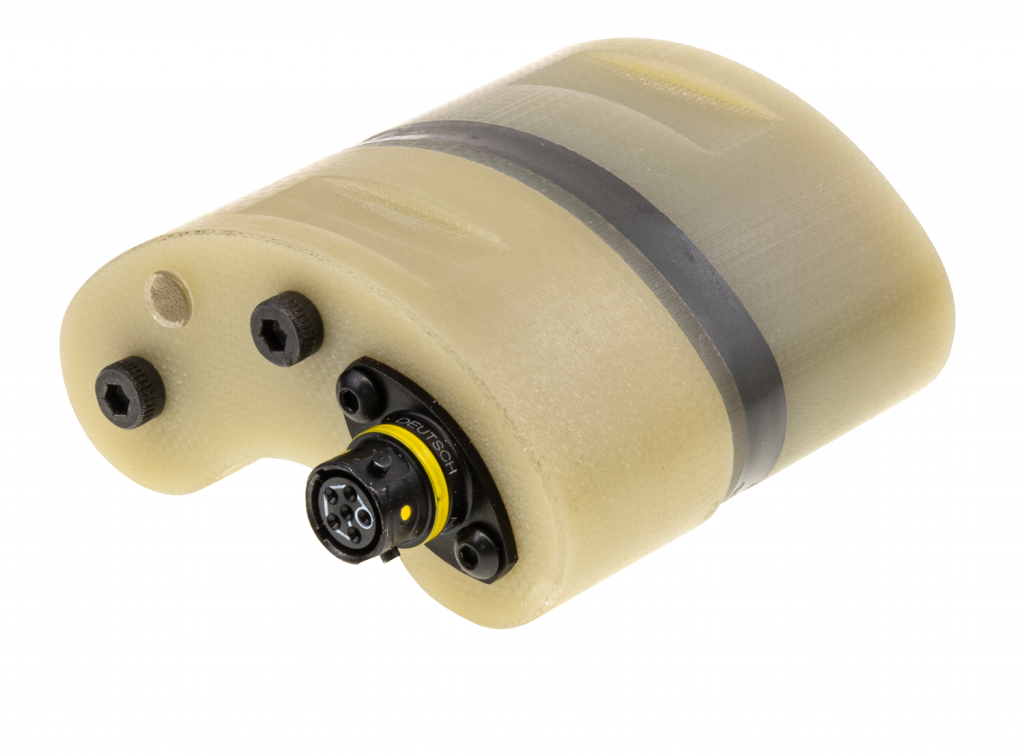

The Michigan Scientific Clamping Induction Telemetry (CIT) is a wireless, non-contact signal transmitter that easily mounts to shafts with a minimum diameter of one inch. The built-in amplifier has programmable gain using a MSC-USB programmer. Strain gauge signals are transmitted digitally with error checking to provide stable and accurate measurements. The small ruggedized housing is intended for hostile environments where vibration, extreme temperature, high acceleration and contaminants are present.
Documents
Clamping Induction Telemetry Datasheet
1 file(s) 487.85 KB
Model CIT CAD
2 file(s) 91.71 KB
