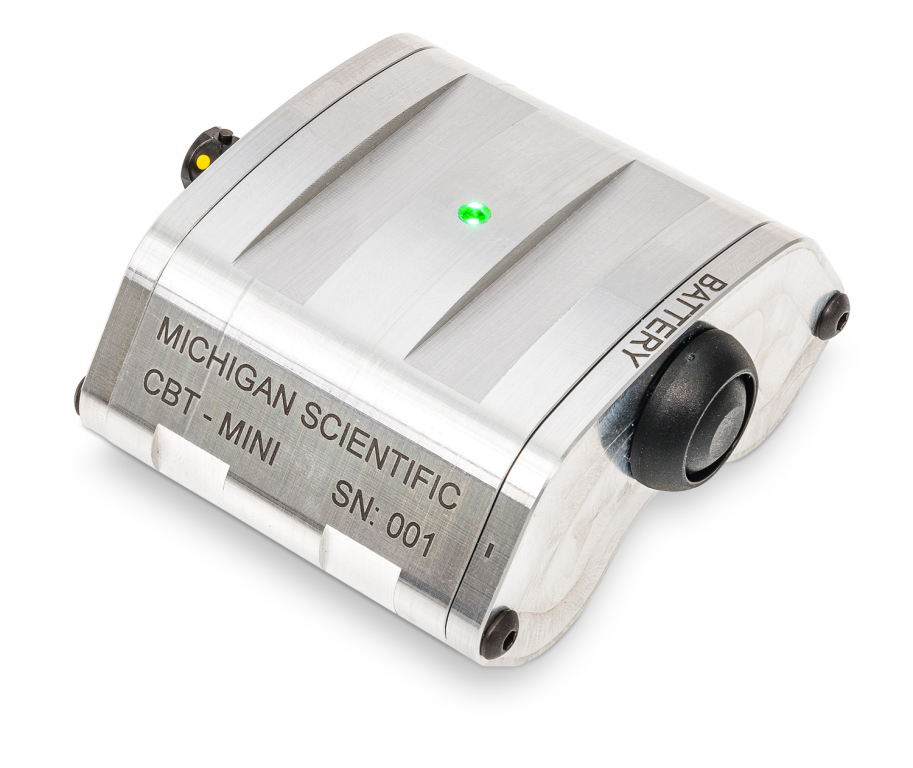

Clamping Battery Telemetry mini (CBT-mini)

Features

  • Clamps to any shaft 25 mm or larger
  • Small package
  • 1 strain gauge bridge channel

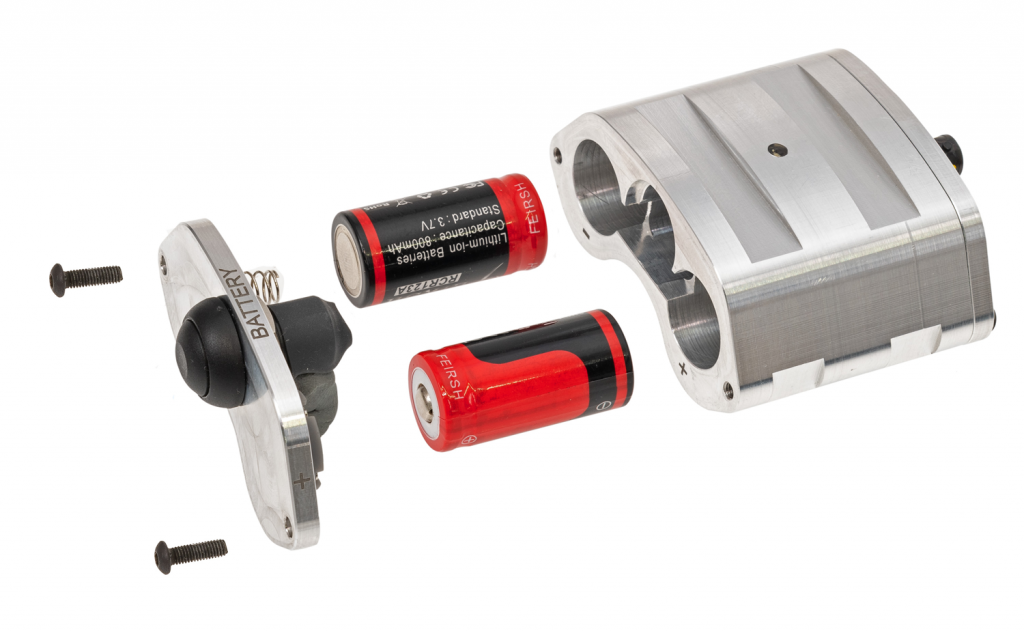

  • Up to 28 hours of battery life
  • Lightweight rugged IP67 housing
  • Digital 2.4 GHz RF link for reliable transmission without interference or spikes

Description

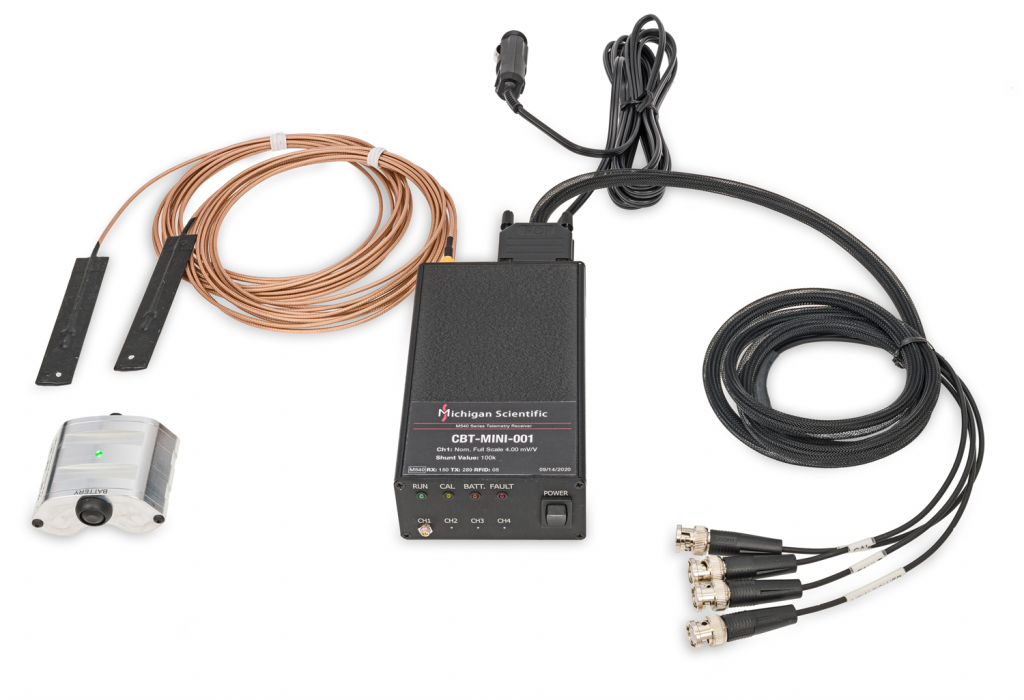

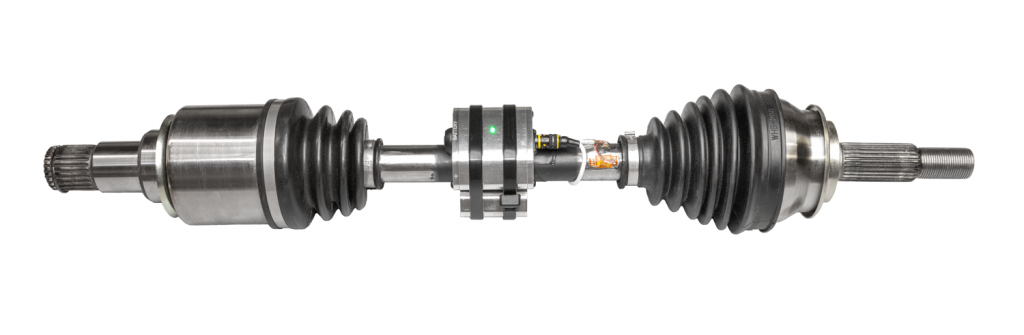

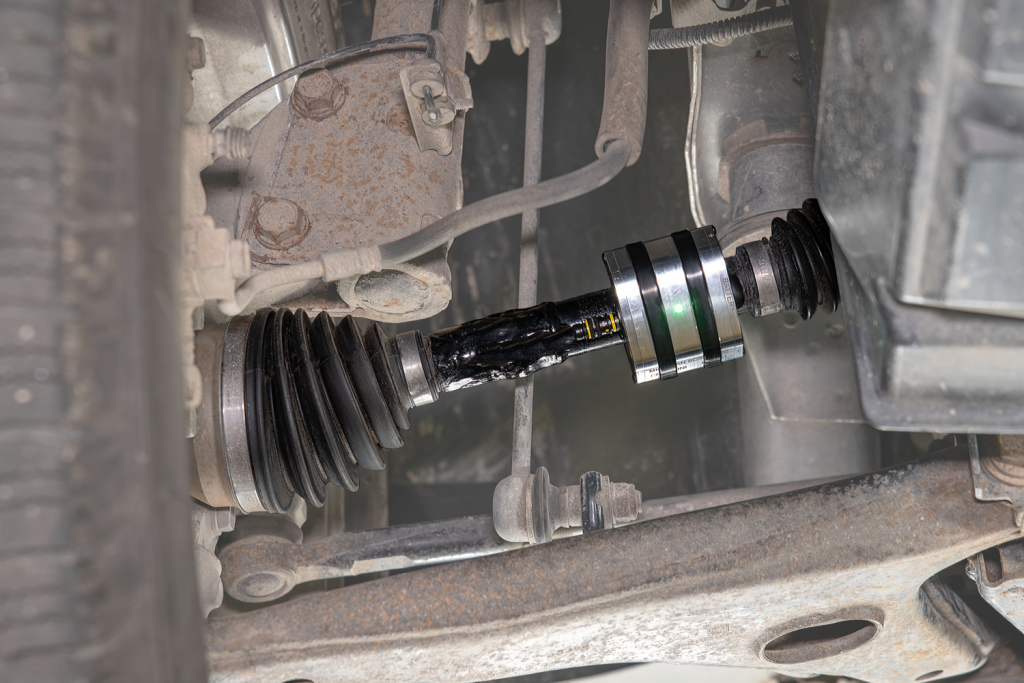

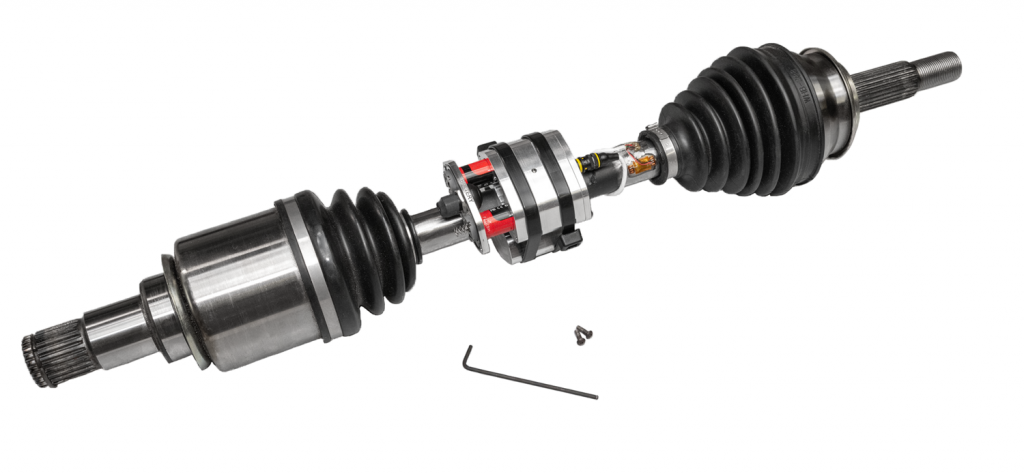

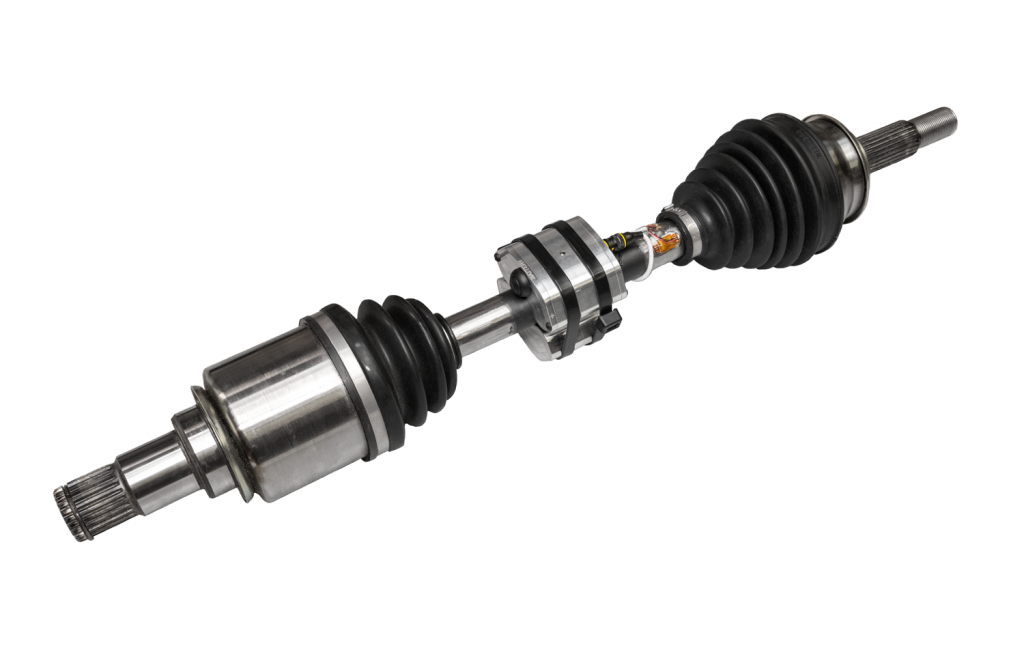

The Michigan Scientific Clamping Battery Telemetry (CBT-mini) is a wireless, battery powered, signal transmitter for strain gauges that easily mounts to shafts with a minimum diameter of 25 mm, making it ideal for shaft mounting and very versatile. The Michigan Scientific Telemetry provides reliable signal transmission without interference or signal spikes. The CBT-mini can conveniently be strapped to any shaft with load rated plastic zip ties, steel banding, or hose clamp. The CBT-mini provides excitation and signal conditioning to the strain gauges, then digitally transmits the signals via RF in the 2.4 GHz broadcast frequency range. For higher speed shafts when shaft balancing is required a counter weight can be purchased and should be mounted 180 degrees opposite the CBT-mini. The CBT-mini is a small rugged housing and is designed for hostile environments.
