Features
- Turnkey solution for MSC Multi-Axis Load Cells
- Available as 3, 6, or 12 channel units
- Highly accurate bridge excitation
- Provides high level voltage signal output
- Precision, low noise differential amplifier
- Bridge excitation On/Off capability
- Shunt calibration capability
- Wide input voltage range
Description

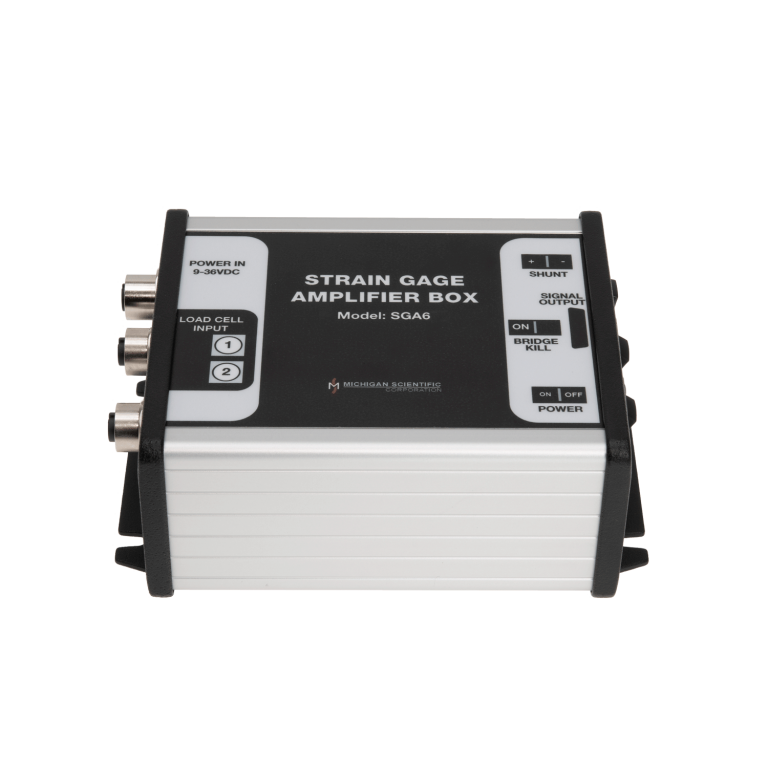

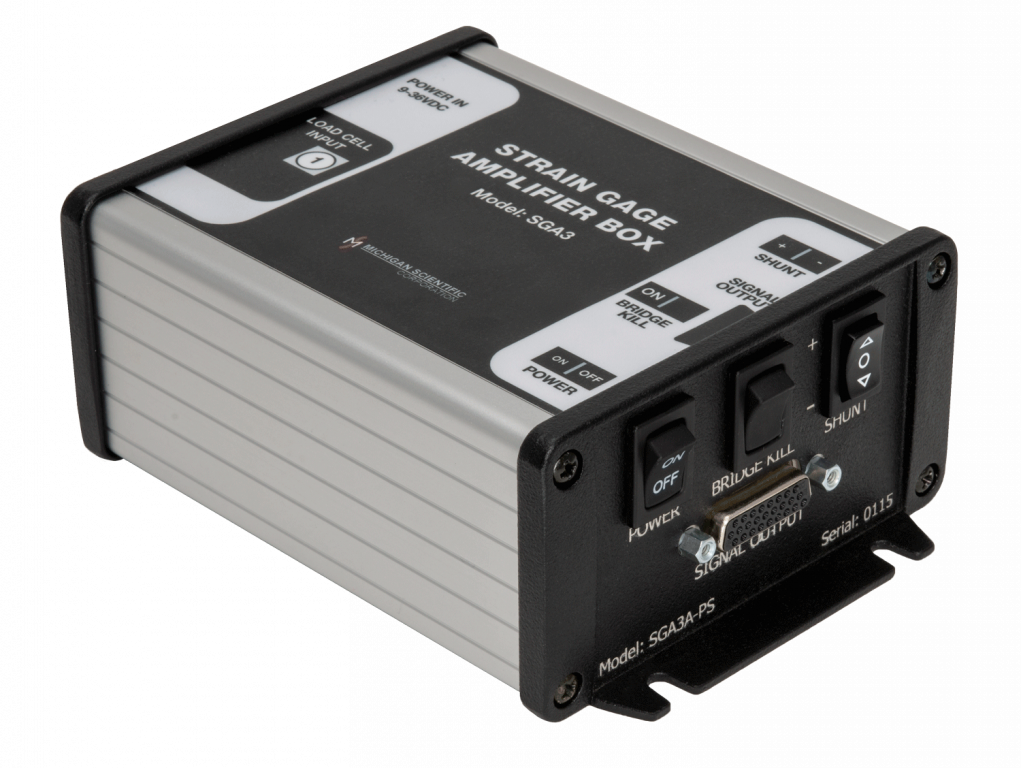

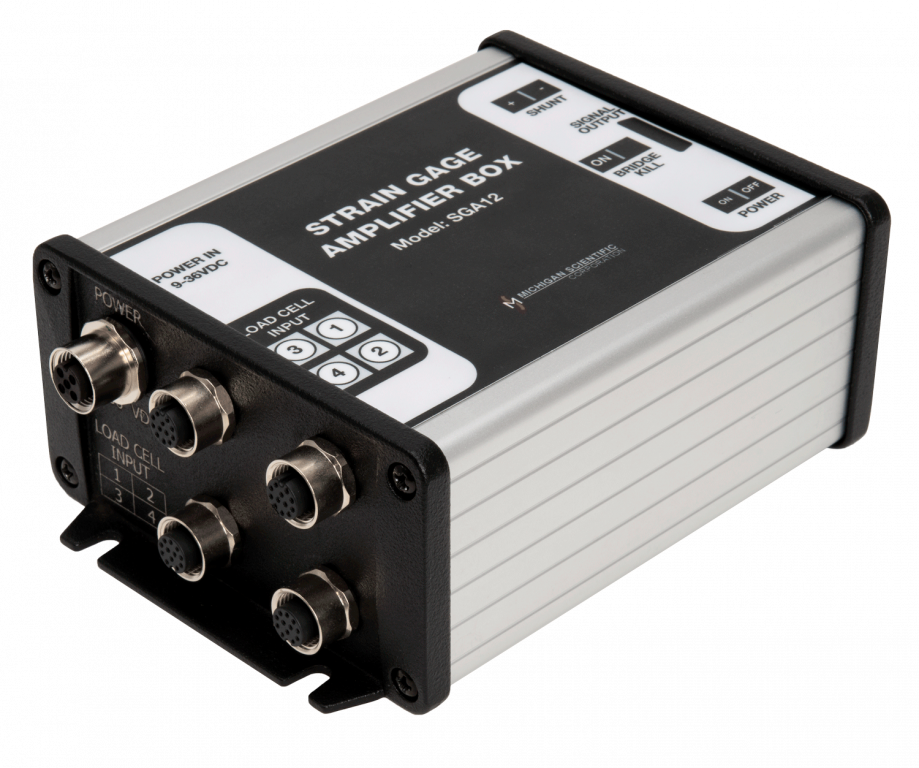

The Michigan Scientific Multi-Channel Strain Gage Amplifier is a turnkey solution for use with any of MSC’s Multi-Axis Load Cells. Up to four of MSC’s wide variety of Three Axis Load Cells can be connected to the amplifier. The Multi-Channel Strain Gage Amplifier provides highly accurate excitation voltage to the load cell, a stable differential amplifier, and integrated shunt resistors for system calibration. The result is an accurate high level voltage output signal. The shunt calibration can be easily invoked with the flip of a switch and bridge excitation can be turned on or off while the amplifier package remains powered.
