Features
- 12 strain channels IN → 1 CAN/CAN FD signal OUT
- Output data up to 8 ksps (CAN FD) / 2 ksps (CAN 2.0)
- Stack up to 4 modules for synchronized 48 channel sampling
- Compact design for non-spinning and spinning applications
- Use with absolute quadrature encoders to output position and speed
- Software-configure each channel independently
- Integrated shunt resistors, software controlled
- Gain adjustable per channel, software controlled
- Used with accelerometers, string pots
- Sensor excitation (4.8V) provided for each sensor
Description

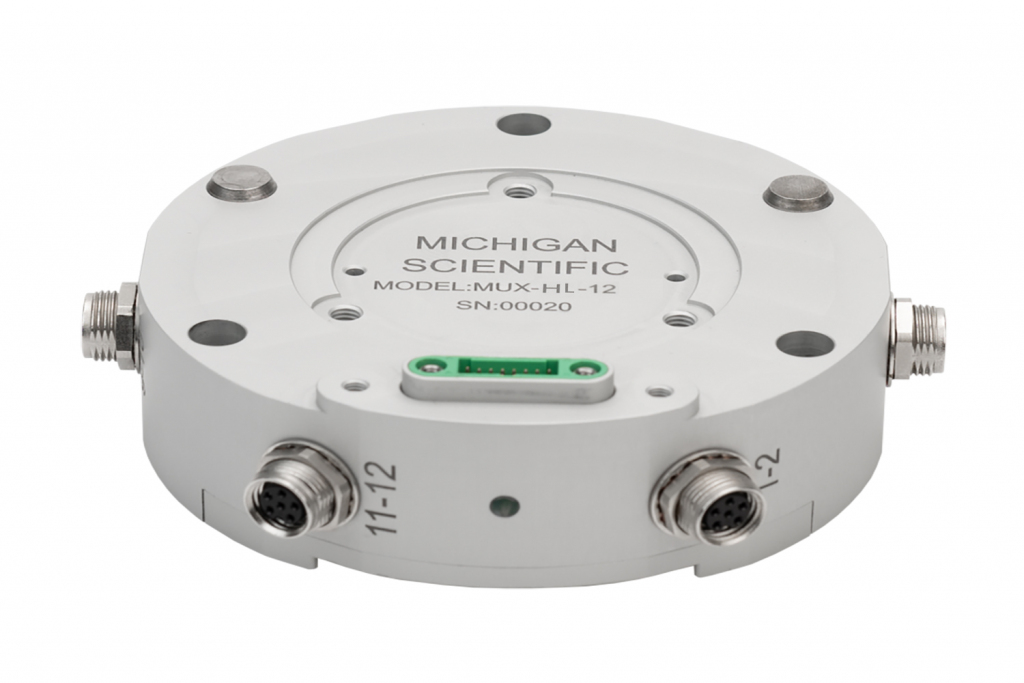

Michigan Scientific’s MUX-HL-12 is a twelve-channel signal conditioning and multiplexing module. Each of the six radial connectors can mate with two sensor outputs. The MUX-HL-12 provides signal conditioning, and digitization of the high level signals. The module has four output connections: two for power, and two for CAN/CAN FD. The output data is CAN 2.0 or CAN FD compatible. A shunt calibration can be initiated at power-up or initiated by user with the module’s configuration software. Additionally, the software allows for independent channel configuration and data recording to a PC.
