Features
- 12 strain channels IN → 1 CAN/CAN FD signal OUT
- Output data up to 8 ksps (CAN FD) / 2 ksps (CAN 2.0)
- Stack up to 4 modules for synchronized 48 channel sampling
- Compact design for non-spinning and spinning applications
- Use with absolute quadrature encoders to output position and speed
- Software-configure each channel independently
- Integrated shunt resistors, software controlled
- Gain adjustable per channel, software controlled
- Used with accelerometers, string pots
- Sensor excitation (4.8V) provided for each sensor
Description

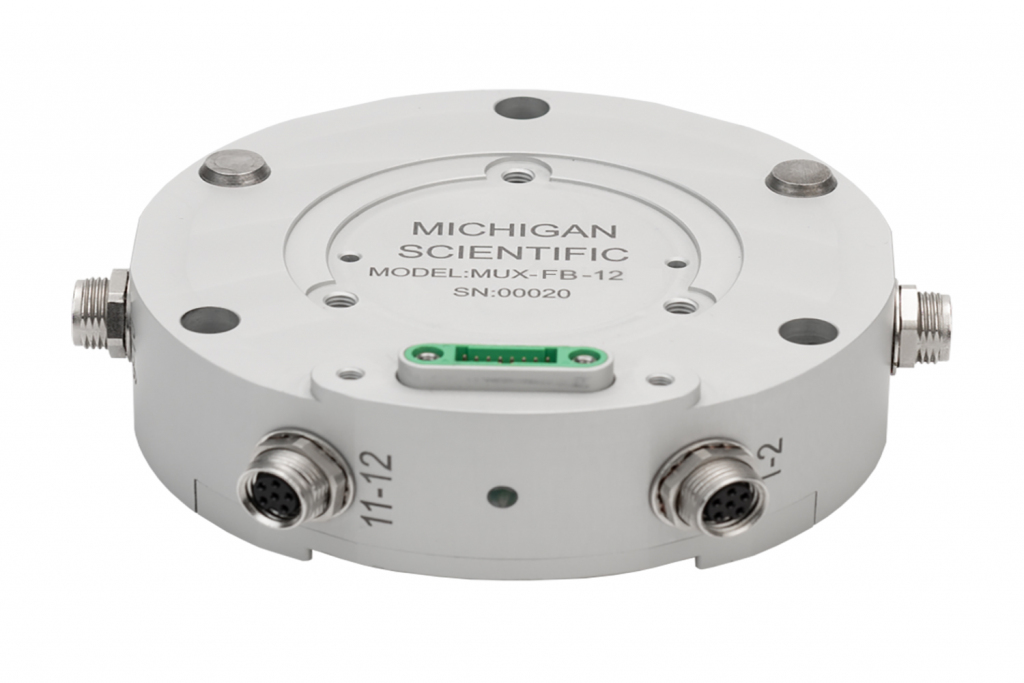

Michigan Scientific’s Multiplexing (MUX-FB-12) Strain Gauge Amplifier is a twelve channel strain gauge amplifier and multiplexing device. Each of the six radial connectors can mate with two 4-wire full-bridge strain gauges. MUX devices are software configurable allowing for independent channel configuration. MUX devices can be connected for applications requiring higher channel counts. Up to 4 devices can be connected to provide 48 channels of synchronously sampled data. Additionally, the configuration software allows for real-time data viewing and recording to a PC.
