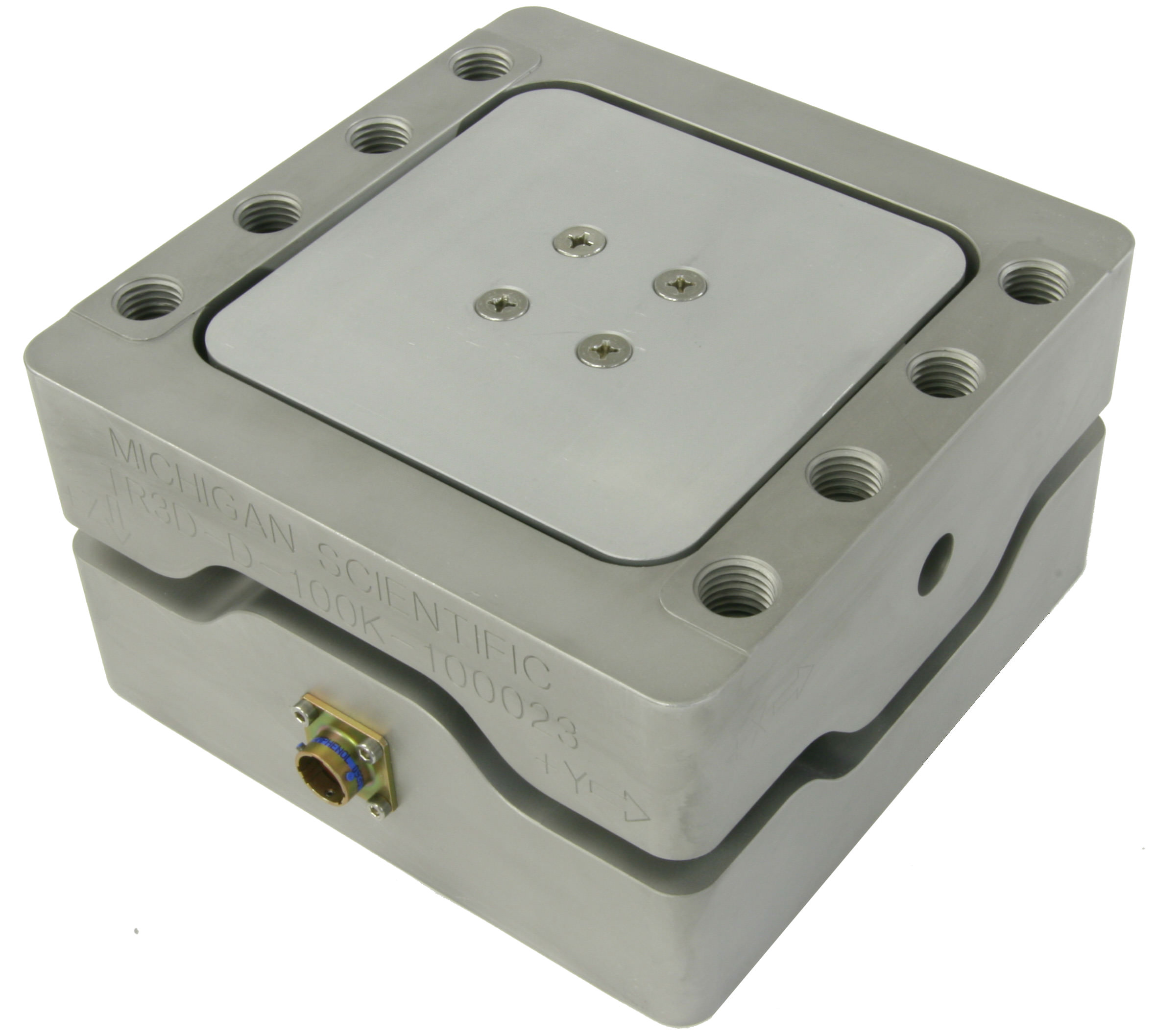

Model TR3D-D-* Square Three Axis Load Cells

Features

  • 50,000 lb or 100,000 lb capacity
  • Measures forces in three perpendicular directions
  • Environmentally protected
  • Temperature compensated
  • Rugged construction
  • Weatherproof connector

Description

Michigan Scientific’s TR3D-D-* Square Three Axis Load Cells are designed for applications that require force measurements in three perpendicular directions. With 50,000 lb and 100,000 lb capacities, these rugged transducers are ideally suited for both field data acquisition and laboratory testing. The transducers have identical top and bottom mounting surfaces and bolt patterns, and can be easily adapted to a variety of applications.

High grade stainless steel material, in addition to weatherproof sealing, combine to provide excellent resistance to corrosion and environmental conditions. Temperature compensation of the transducers ensures stable output throughout a wide temperature range.

Documents

Icon

TR3D-D-* Datasheet

Square Three Directional Load Cell ...
Icon

Load Cell Brochure

Load Cell Brochure ...
Icon

TR3D-D-100K CAD

TR3D-D-100K CAD ...
Tech Notes
Icon

Tech Note 104 | Measurement of Total Load Using Strain Gage Based Transducers in Parallel

Measurement of Total Load Using Strain Gage Based Transducers in Parallel ...
Icon

Tech Note 105 | Strain Gage Output in Response to Free Thermal Expansion, Non-Thermal Stress, and Thermal Stress

Strain Gage Output in Response to Free Thermal Expansion, Non-Thermal Stress, and...
