A load cell is a transducer that converts an applied force into a measurable electrical signal. Engineers use load cells not only to measure force magnitude, but also to monitor how force changes over time.
Traditional single-axis load cells measure force in only one direction. In many vehicle applications, however, forces occur simultaneously in multiple directions. A three-axis load cell addresses this challenge by measuring forces along the X, Y, and Z axes at the same time.
This capability provides a more complete understanding of real-world loading conditions while reducing the need for multiple sensor and complex mounting arrangements.
Michigan Scientific’s three-axis load cells designed specifically for demanding test environments feature:
Capacities ranging from 250 lbf to 100,000 lbf (1.1 kN to 444 kN)
Simultaneous measurement of forces in three axes
Rugged construction for harsh operating conditions
Environmental protection for field and road testing
Individual calibration and temperature compensation
High accuracy and repeatability
In applications where moment measurements are required, multiple load cells can be mounted in tandem to calculate roll, pitch, and yaw moments. This approach is often used when force measurements are needed across multiple mounting points within a vehicle and provides valuable insight into overall vehicle dynamics.
For applications where measuring forces and moments at a single location is preferred, six-axis load cells offer an alternative solution. Unlike a load cell array, a six-axis load cell simultaneously measures three forces and three moments within a single sensor package. This can be advantageous when installation space is limited, when reducing system complexity is important, or when moments need to be measured at a specific component interface rather than across multiple mounting locations. Michigan Scientific offers both 3D and 6D load cell solutions to address a wide range of vehicle testing requirements.
Why Multi-Axis Force Measurement Matters
Vehicle components rarely experience forces in a single direction. During acceleration, braking, cornering, road impacts, and vibration events, loads travel throughout the vehicle structure as complex force vectors.
Understanding these forces helps engineers:
- Improve durability and fatigue life
- Optimize vehicle handling and ride quality
- Reduce weight while maintaining structural integrity
- Validate computer simulations and CAE models
- Identify unexpected loading conditions
- Improve safety and reliability
By measuring all three force components simultaneously, engineers gain a more realistic understanding of how components behave in actual operating conditions.
Suspension Testing Applications
One of the most effective applications for three-axis load cells is suspension force measurement. By installing a load cell between the strut assembly and the vehicle chassis, engineers can directly measure the force transmitted from the suspension into the body structure.
Every steering input, bump, acceleration event, and braking maneuver generates loads that travel through the suspension system. Three-axis load cells allow engineers to quantify these loads and understand how forces are distributed into the chasses, providing valuable insight for suspension tuning, vehicle dynamics development, durability testing and structural validation.
In addition to strut mount measurements, engineers can also instrument individual suspension components with strain gauges to measure loads throughout the suspension system and gain a more detailed understanding of components-level performance.
The resulting data can be used to:
- Validate suspension designs
- Improve chassis tuning
- Identify high-stress components
- Correlate simulation models with physical testing
- Enhance vehicle ride and handling characteristics
This information is particularly valuable in motorsports, where even small improvements in suspension tuning can provide a competitive advantage. Engineers can use measured load data to refine suspension geometry, spring rates, damping characteristics, and overall chassis performance.
Engine and Driveline Mounting Applications
While engine mount testing is a common application for three-axis load cells, engineers also use the technology to measure loads at many other vehicle mounting points. Any location where forces are transferred between components can be a valuable source of data for durability, NVH, and structural development programs.
The engine and transmission generate significant dynamic loads that must be handled through the vehicle’s mounting system. Understanding these forces is critical for designing durable engine mounts, reducing vibration, and improving vehicle refinement.

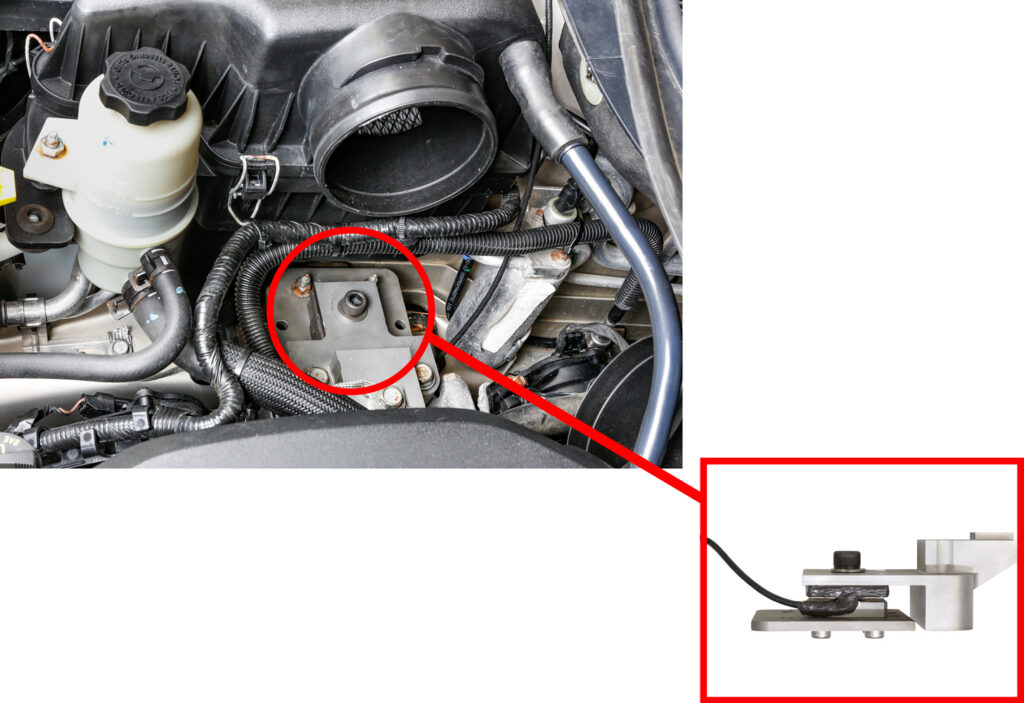

Three-axis load cells can be integrated into engine mount locations to measure the true force vector transmitted between the powertrain and vehicle structure. This allows engineers to evaluate loads generated during:
- Road-induced excitation
- Engine start-up and shutdown
- Rapid acceleration
- Gear shifts
- Braking events
- Idle vibration

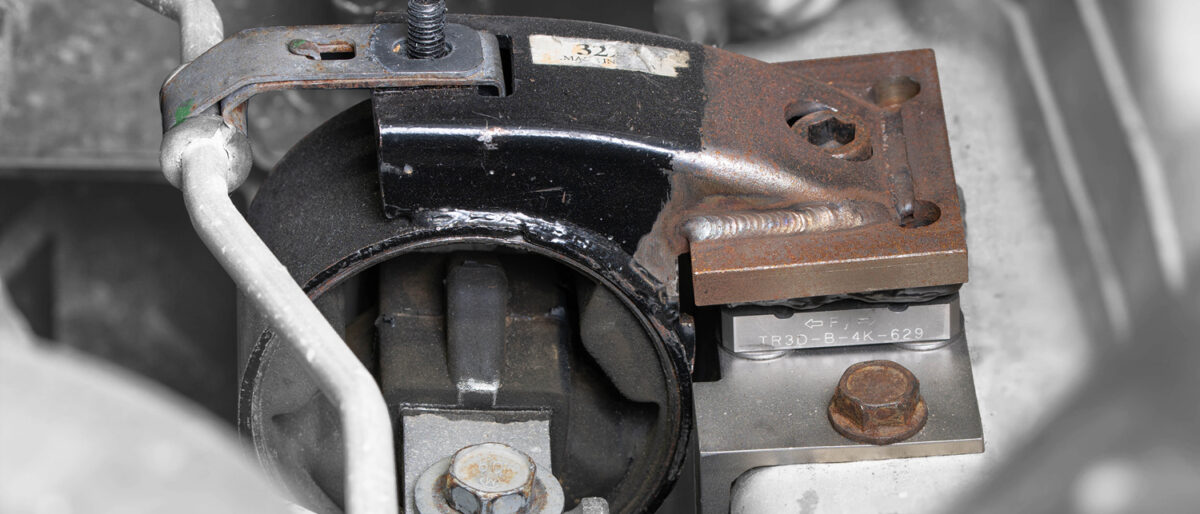

According to our previous vehicle testing examples, load cells installed within engine mount systems provide valuable data about force response during dynamic events such as vehicle acceleration from a complete stop.
By capturing this force directly, engineers can optimize mount design and validate powertrain durability. When integrated with an appropriately designed mounting assembly, the load cells can measure mount reactions while preserving the intended powertrain installation geometry.
Beyond engine mounts, three-axis load cells are frequently used to evaluate forces at transmission mount, driveline support structures, center bearing brackets, chassis interfaces, and other critical vehicle attachment points. Measuring loads directly at these interfaces helps engineers understand how forces propagate through vehicle, validate simulation models, and identify areas for design improvement before production.
Measuring Loads at Critical Component Interface
Vehicle development often requires engineers to understand how forces pass through specific component interfaces, not just major systems such as the suspension or powertrain. Three-axis load cells can be integrated into brackets, supports, mounting structures, and other attachment points throughout a vehicle to measure the load experienced during real-world operation.
These measurements help engineers evaluate durability, validate finite element models, identify unexpected loading conditions, and optimize component designs. Because the sensors simultaneously capture forces in three directions, they provide a more complete picture of the load acting on a component than traditional single-axis measurement methods.

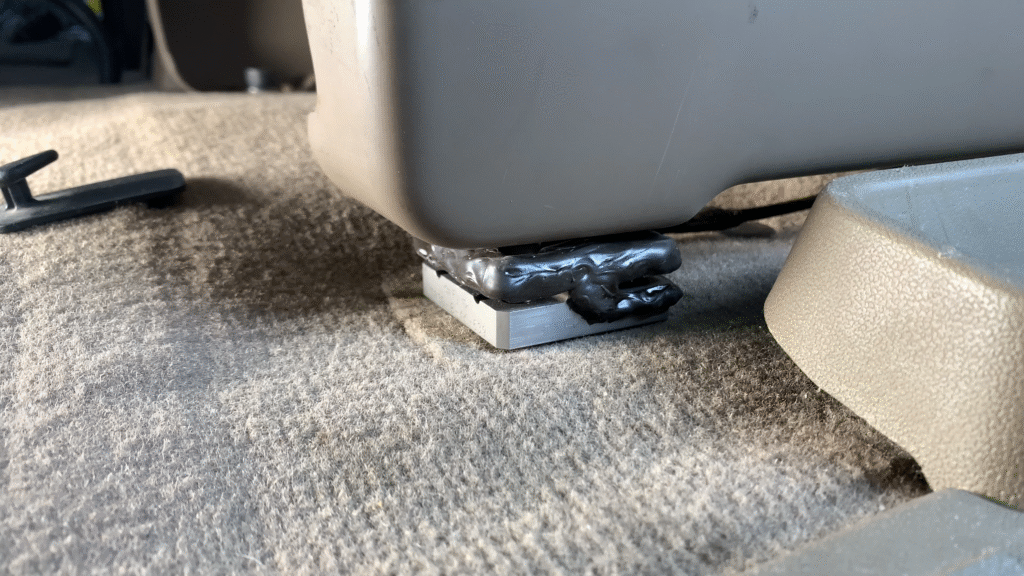

Seat Mount Testing
Seat systems and responsible for occupant comfort, safety, and structural performance. During vehicle operation, occupants transfer loads into the seat structure through a combination of vertical impacts, braking forces, cornering loads, and vibration.
Three-axis load cells can be incorporated into seat mounting locations to measure these forces directly. Engineers use the resulting data to:
- Enhance comfort and vibration performance
- Analyze occupant load transfer
- Improve seat mount durability
- Validate structural designs
- Support safety-related development programs
Because seat systems interact with both occupants and vehicles structures, accurate force measurement is essential for understanding real-world performance.

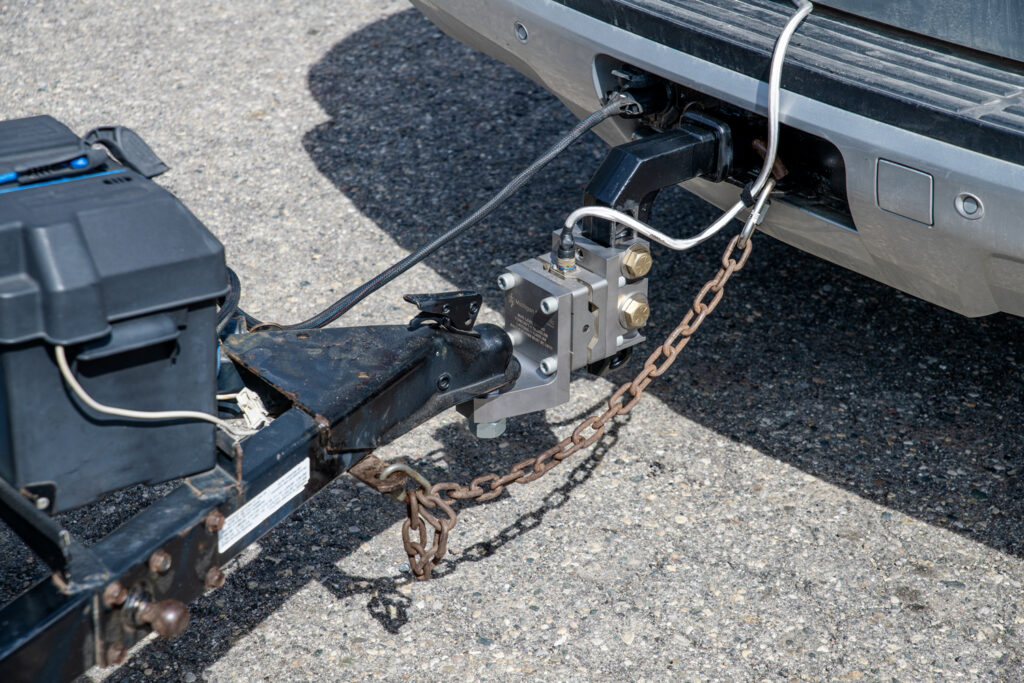

Trailer Hitch and Towing Applications
Vehicles intended for towing must safely withstand a variety of complex loading conditions. Trailer hitches experience forces in multiple directions simultaneously as vehicles accelerate, brake, corner, and travel over uneven road surfaces.
Three-axis load cells mounted in hitch assemblies allow engineers to measure these multidirectional loads directly. The data can then be used to:
- Validate hitch designs
- Improve towing performance
- Establish realistic durability test requirements
- Better understanding customer usage conditions
- Support trailer and towing simulations
.
Selecting the Right Load Cell
No two testing applications are exactly alike. Load cell selections depend on factors such as:
- Expected for range
- Available installation space
- Desired measurement accuracy
- Environmental conditions
- Moment measurements requirements

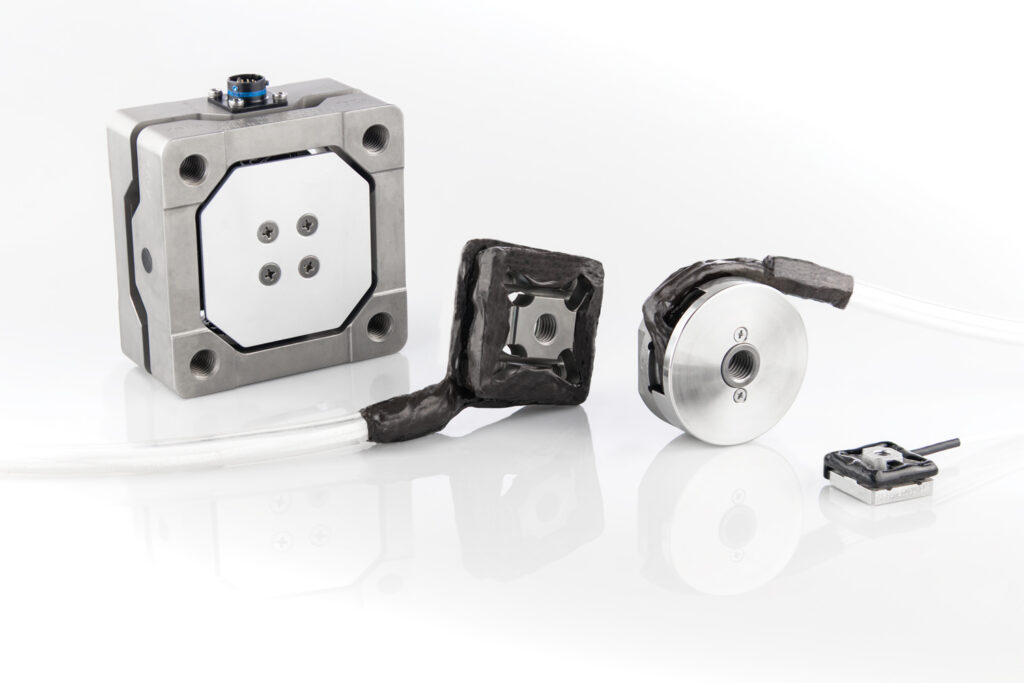

Michigan Scientific offers multiple three-axis load cell families with capacities ranging from compact 250 lbf models for smaller measurements to heavy-duty 100,000 lbf units for large vehicle and industrial applications. Available configurations include round and square designs with varying dimensions and moment capacities to accommodate a wide range of testing requirements.
Contact us today to discuss your application!
