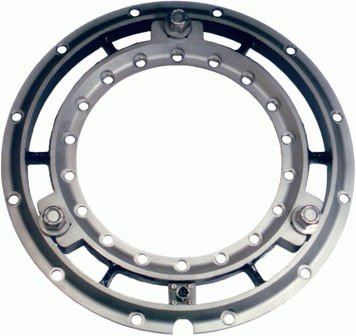

Models TW12.8HRMS175, TW12.8HRMS800 High Resolution Wheel Torque Transducer


  • Measures up to 175 lb-ft and 800 lb-ft
  • Resolves 0.1 lb-ft and 0.2 lb-ft
  • 6000 lb-ft capacity
  • Adapts to 14”and larger wheels
  • Environmentally protected
  • Temperature compensated
  • Rugged stainless steel construction
  • Configured to reduce magnetic sensitivity


Michigan Scientific’s TW12.8HRMS175 and TW12.8HRMS800 Wheel Torque Transducers are high resolution transducers. Ideal for measuring small variations in wheel torque on both passenger cars and light duty trucks, these units provide one channel of torque data, and are designed to attach to adapters that simulate production wheel rims. The adapter system is fabricated by generating a profile of the original wheel rim, and designing a hub adapter and rim adapter that duplicate the critical dimensions of the original rim.The versatility of this system allows the torque transducer to be used with various wheel rim designs.

The TW12.8HRMS175 and the TW12.8HRMS800 Wheel Torque Transducers measure up to 175 lb-ft and 800 lb-ft and resolve 0.1 lb-ft and 0.2 lb-ft respectively. Mechanical protection allows the transducer to be used under normal driving conditions. Torque and combined steer/camber moment overload ratings of each transducer is 6000 lb-ft. These models are geometrically configured to be used with the same adapters as the other TW12.8 models.

High grade stainless steel material and weatherproof sealing provide excellent resistance to corrosion and environmental conditions. Temperature compensation ensures stable output throughout a wide temperature range. All wires are precisely located to reduce sensitivity to magnetic effects.
